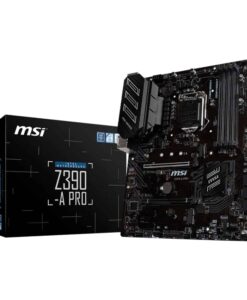

Mainboard MSI Z390 A PRO
3.175.000 ₫
- Hãng sản xuất: MSI
- Form Mainboard: ATX
- Chipset: Z390
- Số khe ram: 4
- Socket: LGA 1151
THÔNG TIN MUA HÀNG
Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
5.170.000 ₫
30.390.000 ₫
23.500.000 ₫
31.490.000 ₫
5.690.000 ₫
- CÁC MẪU PC KHÁC
-
28.360.000 ₫Giảm giá!
6.030.000 ₫5.640.000 ₫
30.690.000 ₫
31.490.000 ₫
5.750.000 ₫
13.800.000 ₫
-
PROCESSOR
Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET
Intel® Z390 Chipset
MEMORY
- 4 x DDR4 memory slots, support up to 64GB1
- Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz1
- Supports Dual Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Please refer to Compatibility for more information on compatible memory
SLOTS
- 2 x PCIe 3.0 x16 slots
- 4 x PCIe 3.0 x1 slots
- 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only
ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
- 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz
MULTI-GPU
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
Intel® Z390 Chipset
- 6 x SATA 6Gb/s ports1
- 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- Intel® Optane™ Memory Ready2
- The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z390 Chipset
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel® Z390 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)1
- The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.
AUDIO
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 6-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x M.2 slots (1 M-Key slot,1 E-Key slot)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 5 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x 4-pin RGB LED connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 1 x Parallel port connector
- 1 x TPM module connector
- 1 x thunderbolt Add-on card connector
- 1 x Front OC button connector
BACK PANEL PORTS
- PS/2 Combo
- VGA
- USB 3.1 Gen2 Type A+C
- LAN
- HD Audio Connectors
- USB 2.0
- DVI-D
- Displayport
- USB 3.1
DIMENSIONS
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice
- 4 x DDR4 memory slots, support up to 64GB1
