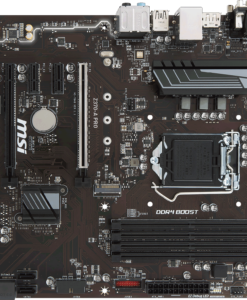

Bo mạch chủ MSI Z370 – A PRO socket LGA 1151
3.400.000 ₫
- Hãng sản xuất: MSI
- Form Mainboard: ATX
- Chipset: Z370
- Số khe ram: 4
- Socket: LGA 1151
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
- CÁC MẪU PC KHÁC
-
24.690.000 ₫
33.390.000 ₫
5.750.000 ₫
11.000.000 ₫
16.560.000 ₫
39.350.000 ₫
-
CPU
• Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset• Intel® Z370 Chipset
Main Memory• 4 x DDR4 memory slots, support up to 64GB
• Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
Slots• 1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
• 1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
• 4 x PCIe 3.0 x1 slots
Multi-GPU• Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz, 1920×1200@60Hz
Storage• Intel® Z370 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
– Support up to PCIe 3.0 x4 and SATA 6Gb/s
– Supports 2242/ 2260 /2280/ 22110 storage devices
– Intel® Optane™ Memory Ready**
• Supports Intel® Smart Response Technology for Intel Core™ processors* The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
** Please refer to page 87 for Intel® Optane™ Memory Configuration.RAID• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB• Intel® Z370 Chipset
– 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio• Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio
LAN • 1 x Intel® RTL8111H Gigabit LAN controller
Internal I/O Connectors– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water pump fan connector
– 4 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Thunderbolt Add-on Card Connector
– 1 x Clear CMOS jumper
Back Panel I/O Ports– 1 x PS/2 mouse & keyboard combo port
– 4 x USB 3.1 Gen1 Type-A ports
– 1 x VGA port
– 1 x DVI-D port
– 1 x DisplayPort
– 1 x LAN (RJ45) port
– 2 x USB 2.0 ports
– 6 x audio jacks
Dimension• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Mounting• 9 mounting holes
Packing
Chipset
- THÔNG SỐ KĨ THUẬT
-
-
CPU
• Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset• Intel® Z370 Chipset
Main Memory• 4 x DDR4 memory slots, support up to 64GB
• Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
Slots• 1 x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
• 1 x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
• 4 x PCIe 3.0 x1 slots
Multi-GPU• Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz, 1920×1200@60Hz
Storage• Intel® Z370 Chipset
• 6 x SATA 6Gb/s ports*
• 1 x M.2 slot (Key M)
– Support up to PCIe 3.0 x4 and SATA 6Gb/s
– Supports 2242/ 2260 /2280/ 22110 storage devices
– Intel® Optane™ Memory Ready**
• Supports Intel® Smart Response Technology for Intel Core™ processors* The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.
** Please refer to page 87 for Intel® Optane™ Memory Configuration.RAID• Intel® Z370 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB• Intel® Z370 Chipset
– 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
Audio• Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio
LAN • 1 x Intel® RTL8111H Gigabit LAN controller
Internal I/O Connectors– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin water pump fan connector
– 4 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Thunderbolt Add-on Card Connector
– 1 x Clear CMOS jumper
Back Panel I/O Ports– 1 x PS/2 mouse & keyboard combo port
– 4 x USB 3.1 Gen1 Type-A ports
– 1 x VGA port
– 1 x DVI-D port
– 1 x DisplayPort
– 1 x LAN (RJ45) port
– 2 x USB 2.0 ports
– 6 x audio jacks
Dimension• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Mounting• 9 mounting holes
Packing
-
