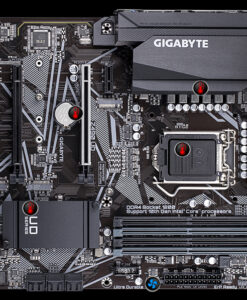

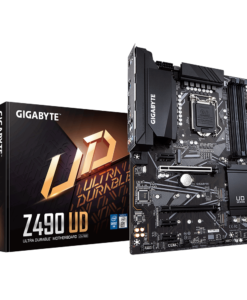

Bo mạch chủ GIGABYTE Z490 UD

4.150.000 ₫

  • Hãng sản xuất: Gigabyte
  • Form Mainboard: ATX
  • Chipset: Z490
  • Số khe ram: 4
  • Socket: LGA1200
Xem cấu hình chi tiết
Mua ngay Giao hàng tận nơi hoặc nhận tại cửa hàng
Mua trả góp Thủ tục đơn giản - Nhanh chóng
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng

Bo mạch chủ

Bo mạch chủ GIGABYTE Z490 GAMING X

4.990.000 ₫

Bo mạch chủ

Bo mạch chủ GIGABYTE Z490 AORUS ELITE

6.190.000 ₫

Bo mạch chủ

Bo mạch chủ GIGABYTE Z490 AORUS PRO AX

7.390.000 ₫

Bo mạch chủ

Bo mạch chủ MSI MEG Z490 ACE

9.899.000 ₫

Bo mạch chủ

Bo mạch chủ MSI MPG Z490M GAMING EDGE WIFI

6.150.000 ₫

Bo mạch chủ

Main Colorful AXE C.AB350M-HD Plus V14

1.850.000 ₫
CÁC MẪU MAINBOARD KHÁC

Bo mạch chủ

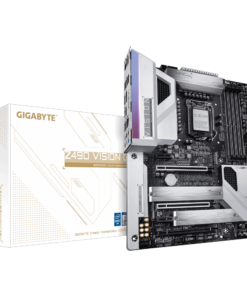

Bo mạch chủ GIGABYTE Z490 VISION D

8.790.000 ₫

Bo mạch chủ

Bo mạch chủ GIGABYTE Z490 GAMING X

4.990.000 ₫

Bo mạch chủ

Bo mạch chủ MSI Z370 PC PRO LGA 1151 socket

3.800.000 ₫

Bo mạch chủ

Mainboard Asus Prime H310M – CS R2.0

1.590.000 ₫

Bo mạch chủ

Mainboard Asrock H410M-HDV

1.590.000 ₫

Bo mạch chủ

Mainboard MSI X370 GAMING PLUS

2.600.000 ₫
Tên thành phần Thông số kỹ thuật
CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset Intel® Z490 Express Chipset
Bộ nhớ Intel® Core™ i9/i7 processors:
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Card đồ họa tích hợp ntegrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Âm thanh Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
Support for S/PDIF Out
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Công nghệ đa card đồ họa Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Giao diện lưu trữ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Kết nối I/O bên trong 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x Q-Flash Plus button
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
Kết nối bảng phía sau 1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Điều khiển I/O iTE® I/O Controller Chip
Theo dõi phần cứng Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Gói phần mềm Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Hệ điều hành Support for Windows 10 64-bit
Hệ số khuôn ATX Form Factor; 30.5cm x 24.4cm
