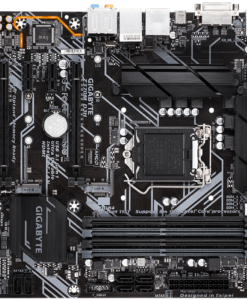

Bo mạch chủ Gigabyte GA Z370M D3H
3.615.000 ₫
- Hãng sản xuất: Gigabyte
- Form Mainboard: ATX
- Chipset: Z370
- Số khe ram: 4
- Socket: LGA 1151
THÔNG TIN MUA HÀNG
Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
28.360.000 ₫
16.290.000 ₫
30.200.000 ₫
20.300.000 ₫
7.800.000 ₫
19.050.000 ₫
- CÁC MẪU PC KHÁC
-
29.690.000 ₫38.140.000 ₫10.600.000 ₫Giảm giá!
8.540.000 ₫8.040.000 ₫22.830.000 ₫30.200.000 ₫
-
CPU
- Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
-
Chipset
- Intel® Z370 Express Chipset
-
Bộ nhớ
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
-
Card đồ họa tích hợpIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
-
Âm thanh
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
-
LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
-
Khe cắm mở rộng
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
Công nghệ đa card đồ họa
- Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
-
Giao diện lưu trữChipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
-
USBChipset:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
- 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB headers)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
-
Kết nối I/O bên trong
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
-
Kết nối bảng phía sau
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
- 6 x USB 3.1 Gen 1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
-
Điều khiển I/O
- iTE® I/O Controller Chip
-
Theo dõi phần cứng
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Tính năng duy nhất
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Gói phần mềm
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Hệ điều hành
- Support for Windows 10 64-bit
-
Hệ số khuôn
- Micro ATX Form Factor; 24.4cm x 24.4cm
-
Ghi chú
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- THÔNG SỐ KĨ THUẬT
-
-
CPU
- Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
-
Chipset
- Intel® Z370 Express Chipset
-
Bộ nhớ
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
-
Card đồ họa tích hợpIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
-
Âm thanh
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
-
LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
-
Khe cắm mở rộng
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
Công nghệ đa card đồ họa
- Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
-
Giao diện lưu trữChipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
-
USBChipset:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
- 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB headers)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
-
Kết nối I/O bên trong
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
-
Kết nối bảng phía sau
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
- 6 x USB 3.1 Gen 1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
-
Điều khiển I/O
- iTE® I/O Controller Chip
-
Theo dõi phần cứng
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Tính năng duy nhất
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Gói phần mềm
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Hệ điều hành
- Support for Windows 10 64-bit
-
Hệ số khuôn
- Micro ATX Form Factor; 24.4cm x 24.4cm
-
Ghi chú
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
-
- ĐÁNH GIÁ SẢN PHẨM
-
Đặt mua Bo mạch chủ Gigabyte GA Z370M D3H

Bo mạch chủ Gigabyte GA Z370M D3H
3.615.000 ₫
còn 2 hàng
