Mainboard MSI MAG Z390 TOMAHAWK

4.250.000

  • Hãng sản xuất: MSI
  • Form Mainboard: ATX
  • Chipset: Z390
  • Số khe ram: 4
  • Socket: LGA 1151
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
  • PROCESSOR

    Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

    See supported processors

    CHIPSET

    Intel® Z390 Chipset

    MEMORY

    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)

    SLOTS

    • 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
    • 2 x PCIe 3.0 x1 slots
    • 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only

    ONBOARD GRAPHICS

    • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz
    • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

    MULTI-GPU

    • Supports 2-Way AMD® CrossFire™ Technology

    STORAGE

    Intel® Z390 Chipset

    • 6x SATA 6Gb/s ports*1
    • 2x M.2 slots (Key M)*1
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
    1. M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.
    2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

    RAID

    Intel® Z390 Chipset

    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

    USB

    Intel® Z390 Chipset

    • 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
    • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
    • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

    AUDIO

    Realtek® ALC892 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output

    LAN

    • 1 x Intel® I219-V Gigabit LAN controller
    • 1 x Intel® I211-AT Gigabit LAN controller

    INTERNAL CONNECTORS

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x 4-pin ATX 12V power connector
    • 6 x SATA 6Gb/s connectors
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin Water Pump connector
    • 5 x 4-pin system fan connectors
    • 1 x Serial port connector
    • 1 x Front panel audio connector
    • 2 x System panel connectors
    • 1 x Chassis Intrusion connector
    • 1 x TPM module connector
    • 2 x 4-pin RGB LED connectors
    • 1 x 3-pin RAINBOW LED connector

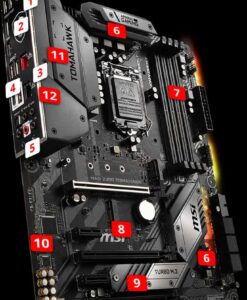

    BACK PANEL PORTS

    1. PS/2 Combo Port
    2. LAN Port
    3. HD Audio Connectors
    4. USB 2.0 Port
    5. DisplayPort
    6. HDMI Port
    7. USB 3.1 Gen2 Type A
    8. USB 3.1 Gen2 Type A+C
    9. Optical S/PDIF OUT
    MSI z390 TOMAHAWK back panel ports

    DIMENSIONS

    • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
    • ATX Form Factor

    MOUNTING

    9 mounting holes

    OPERATING SYSTEM

    • Support for Windows® 10 64-bit

    BOX CONTENT

    MSI z390 TOMAHAWK box content

    1. MSI® does not guarantee the risks or damages caused by changing the cover.
    2. These pictures are for reference only and may vary without notice.
THÔNG SỐ KĨ THUẬT
  • PROCESSOR

    Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

    See supported processors

    CHIPSET

    Intel® Z390 Chipset

    MEMORY

    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)

    SLOTS

    • 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
    • 2 x PCIe 3.0 x1 slots
    • 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only

    ONBOARD GRAPHICS

    • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz
    • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

    MULTI-GPU

    • Supports 2-Way AMD® CrossFire™ Technology

    STORAGE

    Intel® Z390 Chipset

    • 6x SATA 6Gb/s ports*1
    • 2x M.2 slots (Key M)*1
      • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
      • M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready
    1. M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.
    2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

    RAID

    Intel® Z390 Chipset

    • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

    USB

    Intel® Z390 Chipset

    • 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
    • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
    • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

    AUDIO

    Realtek® ALC892 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output

    LAN

    • 1 x Intel® I219-V Gigabit LAN controller
    • 1 x Intel® I211-AT Gigabit LAN controller

    INTERNAL CONNECTORS

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x 4-pin ATX 12V power connector
    • 6 x SATA 6Gb/s connectors
    • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin Water Pump connector
    • 5 x 4-pin system fan connectors
    • 1 x Serial port connector
    • 1 x Front panel audio connector
    • 2 x System panel connectors
    • 1 x Chassis Intrusion connector
    • 1 x TPM module connector
    • 2 x 4-pin RGB LED connectors
    • 1 x 3-pin RAINBOW LED connector

    BACK PANEL PORTS

    1. PS/2 Combo Port
    2. LAN Port
    3. HD Audio Connectors
    4. USB 2.0 Port
    5. DisplayPort
    6. HDMI Port
    7. USB 3.1 Gen2 Type A
    8. USB 3.1 Gen2 Type A+C
    9. Optical S/PDIF OUT
    MSI z390 TOMAHAWK back panel ports

    DIMENSIONS

    • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
    • ATX Form Factor

    MOUNTING

    9 mounting holes

    OPERATING SYSTEM

    • Support for Windows® 10 64-bit

    BOX CONTENT

    MSI z390 TOMAHAWK box content

    1. MSI® does not guarantee the risks or damages caused by changing the cover.
    2. These pictures are for reference only and may vary without notice.
