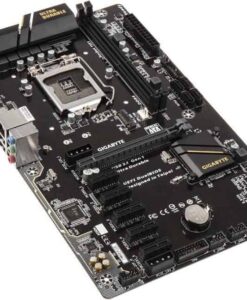

Mainboard Gigabyte GA-H110-D3A

1.995.000

  • Hãng sản xuất: Gigabyte
  • Form Mainboard: ATX
  • Chipset: H110
  • Số khe ram: 2
  • Socket: LGA 1151
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
  • CPU

    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® H110 Express Chipset
  • Bộ nhớ
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2400 MHz or XMP memory, you must install a 7th generation processor.

    (Please refer “Memory Support List” for more information.)

  • Card đồ họa tích hợp
    Integrated Graphics Processor – Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

    Maximum shared memory of 1 GB

  • Âm thanh
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Khe cắm mở rộng
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. 5 x PCI Express x1 slots
      (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

    * When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices.

  • Giao diện lưu trữ
    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  • USB
    Chipset:

    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Kết nối I/O bên trong
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x PCIe power connectors
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 4 x SATA 6Gb/s connectors
    7. 1 x M.2 Socket 3 connector
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header
    14. 1 x Clear CMOS jumper
  • Kết nối bảng phía sau
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 2 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • Điều khiển I/O
    1. iTE® I/O Controller Chip
  • Theo dõi phần cứng
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Tính năng duy nhất
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      Ambient LED
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      ON/OFF Charge
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Gói phần mềm
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Hệ điều hành
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
  • Hệ số khuôn
    1. ATX Form Factor; 30.5cm x 19.0cm
  • Ghi chú
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
THÔNG SỐ KĨ THUẬT
  • CPU

    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® H110 Express Chipset
  • Bộ nhớ
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2400 MHz or XMP memory, you must install a 7th generation processor.

    (Please refer “Memory Support List” for more information.)

  • Card đồ họa tích hợp
    Integrated Graphics Processor – Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

    Maximum shared memory of 1 GB

  • Âm thanh
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Khe cắm mở rộng
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. 5 x PCI Express x1 slots
      (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

    * When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices.

  • Giao diện lưu trữ
    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  • USB
    Chipset:

    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Kết nối I/O bên trong
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x PCIe power connectors
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 4 x SATA 6Gb/s connectors
    7. 1 x M.2 Socket 3 connector
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header
    14. 1 x Clear CMOS jumper
  • Kết nối bảng phía sau
    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 2 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • Điều khiển I/O
    1. iTE® I/O Controller Chip
  • Theo dõi phần cứng
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Tính năng duy nhất
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      Ambient LED
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      ON/OFF Charge
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Gói phần mềm
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Hệ điều hành
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
  • Hệ số khuôn
    1. ATX Form Factor; 30.5cm x 19.0cm
  • Ghi chú
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
