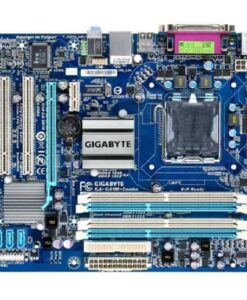

Mainboard Gigabyte G41 DDR2

1.320.000

  • Hãng sản xuất: Gigabyte
  • Form Mainboard: ATX
  • Chipset: G41
  • Số khe ram: 4
  • Socket: LGA 775
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
  • CPU

    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium®processor Extreme Edition/Intel® Pentium®D processor/Intel® Pentium®4 processor Extreme Edition/Intel® Pentium®4 processor/Intel® Celeron®processor in the LGA 775 package
    2. L2 cache varies with CPU
  • Bus mặt trước
    1. 1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® G41 Chipset
    2. South Bridge: Intel® ICH7
  • Bộ nhớ
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR2 800/667 MHz memory modules
  • Card đồ họa tích hợp
    1. Integrated in the North Bridge
  • Âm thanh
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 2)
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. Realtek RTL8111C/D(L) chip (10/100/1000 Mbit)
  • Khe cắm mở rộng
    1. 1 x PCI Express x16 slot, running at x 16
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • Giao diện lưu trữ
    South Bridge:

    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

    iTE IT8718 chip:

    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Kết nối I/O bên trong
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In /Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x power LED header
    15. 1 x chassis intrusion header
  • Kết nối bảng phía sau
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line out/Microphone)
  • Điều khiển I/O
    1. iTE IT8718 chip
  • Theo dõi phần cứng
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Tính năng duy nhất
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Virtual Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver (Note 5)
    9. Support for Time Repair
    10. Support for Q-Share
  • Gói phần mềm
    1. Norton Internet Security (OEM version)
  • Hệ điều hành
    1. Support for Microsoft® Windows Vista/XP
  • Hệ số khuôn
    1. Micro ATX Form Factor; 24.4cm x 19.4cm
THÔNG SỐ KĨ THUẬT
  • CPU

    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium®processor Extreme Edition/Intel® Pentium®D processor/Intel® Pentium®4 processor Extreme Edition/Intel® Pentium®4 processor/Intel® Celeron®processor in the LGA 775 package
    2. L2 cache varies with CPU
  • Bus mặt trước
    1. 1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® G41 Chipset
    2. South Bridge: Intel® ICH7
  • Bộ nhớ
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR2 800/667 MHz memory modules
  • Card đồ họa tích hợp
    1. Integrated in the North Bridge
  • Âm thanh
    1. Realtek ALC888B codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 2)
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. Realtek RTL8111C/D(L) chip (10/100/1000 Mbit)
  • Khe cắm mở rộng
    1. 1 x PCI Express x16 slot, running at x 16
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • Giao diện lưu trữ
    South Bridge:

    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

    iTE IT8718 chip:

    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Kết nối I/O bên trong
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF In /Out header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x power LED header
    15. 1 x chassis intrusion header
  • Kết nối bảng phía sau
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x serial port
    5. 1 x D-Sub port
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line out/Microphone)
  • Điều khiển I/O
    1. iTE IT8718 chip
  • Theo dõi phần cứng
    1. System voltage detection
    2. CPU temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Tính năng duy nhất
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Virtual Dual BIOS
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver (Note 5)
    9. Support for Time Repair
    10. Support for Q-Share
  • Gói phần mềm
    1. Norton Internet Security (OEM version)
  • Hệ điều hành
    1. Support for Microsoft® Windows Vista/XP
  • Hệ số khuôn
    1. Micro ATX Form Factor; 24.4cm x 19.4cm
