Giảm giá!

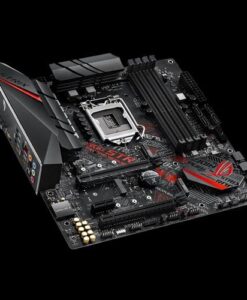

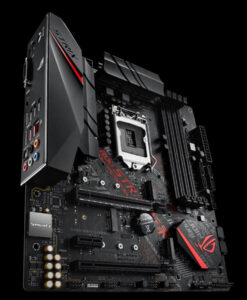

Mainboard Asus ROG STRIX B365-G GAMING

2.250.000  1.790.000

Thông số sản phẩm
  • Socket: Intel 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
  • Kích thước: m-ATX
  • Khe cắm RAM: 4 khe (Tối đa 64GB)
  • Khe cắm mở rộng: 1 x PCIe 3.0 x16 /1 x PCIe 3.0 x16/1 x PCIe 3.0 x1
  • Khe cắm ổ cứng: 1 x M.2 Socket 3/ 1 x M.2 Socket 3/ 6 x SATA 6Gb/s
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng

Thông số kỹ thuật chi tiết Mainboard ASUS ROG STRIX B365-G GAMING (Intel B365 , Socket 1151, m-ATX, 4 khe RAM DDR4)



CPU hỗ trợ Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® B365
Bộ nhớ trong Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hiển thị đồ họa Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
– Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Hỗ trợ Multi-GPU Supports AMD 2-Way CrossFireX Technology
Khe mở rộng 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode) *1
1 x PCIe 3.0 x1
Chuẩn lưu trữ Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *
Mạng Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Âm Thanh ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB (Line-out at rear) 113 dB SNR recording input
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Kết nối ngoài 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port
Kết nối trong 1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)
Kích thước mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
THÔNG SỐ KĨ THUẬT

Thông số kỹ thuật chi tiết Mainboard ASUS ROG STRIX B365-G GAMING (Intel B365 , Socket 1151, m-ATX, 4 khe RAM DDR4)



CPU hỗ trợ Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0
Chipset Intel® B365
Bộ nhớ trong Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hiển thị đồ họa Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
– Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Hỗ trợ Multi-GPU Supports AMD 2-Way CrossFireX Technology
Khe mở rộng 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode) *1
1 x PCIe 3.0 x1
Chuẩn lưu trữ Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *
Mạng Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Âm Thanh ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB (Line-out at rear) 113 dB SNR recording input
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Kết nối ngoài 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port
Kết nối trong 1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)
Kích thước mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
