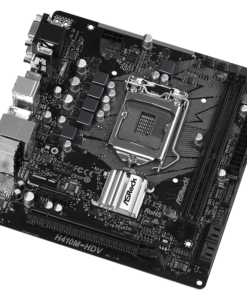

Mainboard Asrock H410M-HDV
1.590.000 ₫
QUÀ TẶNG KHI MUA MAINBOARD
Giảm thêm 200K khi mua cùng CPU Intel Core i3 10100
- Hãng sản xuất: Asrock
- Form Mainboard: M-ATX
- Chipset: H410
- Số khe ram: 2
- Socket: LGA 1200
THÔNG TIN MUA HÀNG
Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI
KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
Bo mạch chủ
1.590.000 ₫
Bo mạch chủ
7.290.000 ₫
Bo mạch chủ
7.300.000 ₫
Bo mạch chủ
3.615.000 ₫
Bo mạch chủ
7.070.000 ₫
Bo mạch chủ
3.619.000 ₫
- CÁC MẪU MAINBOARD KHÁC
-
Bo mạch chủ
6.290.000 ₫
Bo mạch chủ
12.790.000 ₫
Bo mạch chủ
4.990.000 ₫
Bo mạch chủ
1.590.000 ₫
Bo mạch chủ
3.800.000 ₫
Bo mạch chủ
5.439.000 ₫
| Unique Feature | ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) Digi Power design 5 Power Phase design Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel® H410 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory* Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB** Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock’s website for more information. Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Graphics | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows® OS. |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Slots | 1 x PCI Express 3.0 x16 Slot* 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

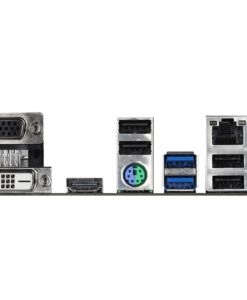

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Instant Flash ASRock Internet Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans Fan Tachometer: CPU, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans CASE OPEN detection CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Form Factor | Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm Solid Capacitor design |
| OS | Microsoft® Windows® 10 64-bit |
- THÔNG SỐ KĨ THUẬT
-
Unique Feature ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopCPU Supports 10th Gen Intel® Core™ Processors (Socket 1200)
Digi Power design
5 Power Phase design
Supports Intel® Turbo Boost Max 3.0 TechnologyChipset Intel® H410 Memory Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB**
Supports Intel® Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock’s website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustmentGraphics Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge ProtectionLAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXESlots 1 x PCI Express 3.0 x16 Slot*
1 x PCI Express 3.0 x1 Slot
*Supports NVMe SSD as boot disksStorage 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug Connector 1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFI Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data CablesHardware Monitor Temperature Sensing: CPU, Chassis/Water Pump Fans
Fan Tachometer: CPU, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
CASE OPEN detection
CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustmentForm Factor Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
Solid Capacitor designOS Microsoft® Windows® 10 64-bit - ĐÁNH GIÁ SẢN PHẨM
-
