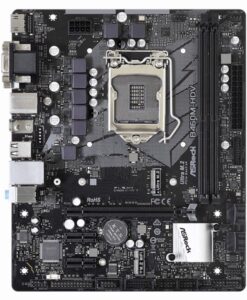

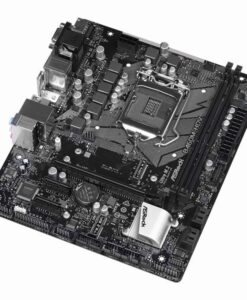

MAIN ASROCK B460M-HDV

1.850.000

  • Hãng sản xuất: Asrock
  • Form Mainboard: M-ATX
  • Chipset: B460
  • Số khe ram: 2
  • Socket: LGA 1200
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
1.780.000
950.000
6.190.000
5.140.000
6.290.000
4.990.000
CÁC MẪU MAINBOARD KHÁC
9.899.000
1.995.000
1.850.000
950.000

Bo mạch chủ

Mainboard MSI Z370M-S01

2.400.000
1.920.917
Unique Feature ASRock Super Alloy
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports 10th Gen Intel® Core™ Processors (Socket 1200)
Digi Power design
7 Power Phase design
Supports Intel® Turbo Boost Max 3.0 Technology
Chipset  Intel® B460
Memory Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB**
Supports Intel® Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock’s website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Graphics  Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
– Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**VP9 10bit and VC-1 are for decode only.* VP8 and VP9 encode are not supported by Windows® OS.
Audio  7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection
LAN Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel® I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots 1 x PCI Express 3.0 x16 Slot*
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
*Supports NVMe SSD as boot disks
Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
*Supports Intel® Optane Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector 1 x Print Port Header
1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O 1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets
Hardware Monitor Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST
Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
Solid Capacitor design
OS Microsoft® Windows® 10 64-bit
THÔNG SỐ KĨ THUẬT
