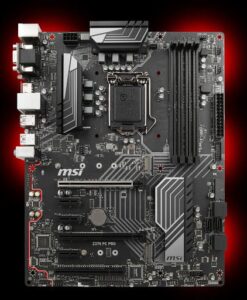

Bo mạch chủ MSI Z370 PC PRO LGA 1151 socket

3.800.000

  • Hãng sản xuất: MSI
  • Form Mainboard: ATX
  • Chipset: Z370
  • Số khe ram: 4
  • Socket: LGA 1151-v2

còn 1 hàng

THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
Nhập số điện thoại của bạn để được tư vấn



Hoặc gọi cho Hoàng Sơn:
078.771.6888
  • CPU

    • Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151


    Chipset

    • Intel® Z370 Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    – Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
    • Dual channel memory architecture
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)**
    * Please refer to www.msi.com for more information on compatible memory.


    Slots

    • 2 x PCIe 3.0 x16 slots (supports x16/x4 mode)* • 3 x PCIe 3.0 x1 slots**
    • 1 x PCI slot
    * The PCI_E4 slot will be unavailable when an M.2 PCIe SSD module has been installed in the M.2_2 slot.
    ** The PCI_E2/ PCI1 slot will be unavailable when an expansion card has been installed in the PCI_E3/ PCI_E5 slot.



    Onboard Graphics

    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz, 2560×1600@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
    • 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz



    Multi-GPU

    • Supports 2-Way AMD® CrossFire™ Technology


    Storage

    • Intel® Z370 Chipset
    • 6 x SATA 6Gb/s ports*
    • 2 x M.2 slots (Key M)
    – Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    – Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
    – M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
    – M2_2 slot supports 2242/ 2260 /2280 storage devices
    – Supports Intel® Optane™ Memory Ready for all M.2 slots***
    * M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x SATA HDDs. Please refer to page 29 for M.2 slots with examples of various combination possibilities.
    ** The Turbo U.2 Host Card is not included, please purchase separately.
    *** Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

    RAID
    • Intel® Z370 Chipset
    – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    – Supports RAID 0 and RAID 1 for M.2 storage devices*
    * M.2 PCIe RAID volume can be created with M.2/Optane Genie.


    USB

    • ASMedia® ASM3142 Chipset
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

    • Intel® Z370 Chipset
    – 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)



    Audio

    • Realtek® ALC887 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Intel® I219-V Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    – 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 1 x 4-pin water pump fan connector
    – 4 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x Thunderbolt add-on card connector
    – 1 x RGB LED connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1 x PS/2 mouse & keyboard combo port
    – 2 x USB 2.0 Type-A ports
    – 1 x VGA port
    – 1 x DVI-D port
    – 1 x HDMI™ port
    – 1 x LAN (RJ45) port
    – 4 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen2 Type-A port
    – 1 x USB 3.1 Gen2 Type-C port
    – 3 x audio jacks


    Dimension

    • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
    • ATX Form Factor


    Mounting

    • 9 mounting holes


    Packing
