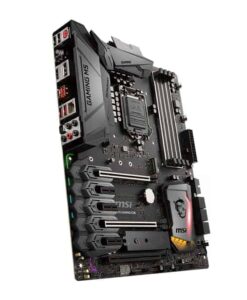

Bo mạch chủ MSI Z370 GAMING M5 socket LGA 1151

5.439.000

  • Hãng sản xuất: MSI
  • Form Mainboard: ATX
  • Chipset: Z370
  • Số khe ram: 4
  • Socket: LGA 1151-v2
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
  • CPU

    • Supports 8th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151


    Chipset

    • Intel® Z370 Express Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
    • Supports Dual channel memory architecture
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    * Please refer to www.msi.com for more information on compatible memory.


    Slots

    • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
    • 3 x PCIe 3.0 x1 slots


    Onboard Graphics

    • 1 x HDMI™ port, supports a maximum resolution of 4096 x 2160@30Hz, 2560×1600@60Hz
    • 1 x DisplayPort, supports a maximum resolution of 4096 x 2304@24Hz, 3840 x 2160@60Hz,1920X1200@60Hz



    Multi-GPU

    • Supports 3-Way AMD® CrossFire™ Technology
    • Supports 2-Way NVIDIA® SLI™ Technology


    Storage

    • Intel® Z370 Chipset
    • 6 x SATA 6Gb/s ports*
    • 2 x M.2 slots (Key M)
    – Support up to PCIe 3.0 x4 and SATA 6Gb/s
    – M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
    – M2_2 slot supports 2242/ 2260 /2280 storage devices
    – Intel® Optane™ Memory Ready for all M.2 slots

    * The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 33 for M.2 & SATA combination table.

    RAID

    • Intel® Z370 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 storage devices*
    * M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page 51 for details about M.2 GENIE.


    USB

    • ASMedia® ASM3142 Chipset
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

    • Intel® Z370 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    – 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)


    Audio

    • Realtek® ALC1220 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x KillerTM E2500 Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x M.2 slots
    – 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x 4-pin CPU fan connector
    – 1 x 4-pin water pump fan connector
    – 4 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper
    – 1 x Flash BIOS Button button
    – 1 x 2-Digit Debug Code LED
    – 1 x LED power input connector



    Back Panel I/O Ports

    – 1 x PS/2 mouse & keyboard combo port
    – 3 x USB 2.0 ports
       *1 x Flash BIOS Button
    – 1 x Clear CMOS button
    – 1 x DisplayPort
    – 1 x HDMI™ port
    – 1 x USB 3.1 Gen2 Type-A port
    – 1 x USB 3.1 Gen2 Type-C port
    – 1 x LAN (RJ45) port
    – 2 x USB 3.1 Gen1 Type-A ports
    – 1 x Optical S/PDIF OUT connector
    – 5 x OFC audio jacks


    Dimension

    • 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
    • ATX Form Factor


    Mounting

    • 9 mounting holes


    Unpacking
    packing
THÔNG SỐ KĨ THUẬT
  • CPU

    • Supports 8th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151


    Chipset

    • Intel® Z370 Express Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Memory
    • Supports Dual channel memory architecture
    • Supports non-ECC, un-buffered memory
    • Supports Intel® Extreme Memory Profile (XMP)
    * Please refer to www.msi.com for more information on compatible memory.


    Slots

    • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
    • 3 x PCIe 3.0 x1 slots


    Onboard Graphics

    • 1 x HDMI™ port, supports a maximum resolution of 4096 x 2160@30Hz, 2560×1600@60Hz
    • 1 x DisplayPort, supports a maximum resolution of 4096 x 2304@24Hz, 3840 x 2160@60Hz,1920X1200@60Hz



    Multi-GPU

    • Supports 3-Way AMD® CrossFire™ Technology
    • Supports 2-Way NVIDIA® SLI™ Technology


    Storage

    • Intel® Z370 Chipset
    • 6 x SATA 6Gb/s ports*
    • 2 x M.2 slots (Key M)
    – Support up to PCIe 3.0 x4 and SATA 6Gb/s
    – M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
    – M2_2 slot supports 2242/ 2260 /2280 storage devices
    – Intel® Optane™ Memory Ready for all M.2 slots

    * The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 33 for M.2 & SATA combination table.

    RAID

    • Intel® Z370 Chipset
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • Supports RAID 0 and RAID 1 for M.2 storage devices*
    * M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page 51 for details about M.2 GENIE.


    USB

    • ASMedia® ASM3142 Chipset
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

    • Intel® Z370 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    – 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)


    Audio

    • Realtek® ALC1220 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x KillerTM E2500 Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x M.2 slots
    – 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x 4-pin CPU fan connector
    – 1 x 4-pin water pump fan connector
    – 4 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper
    – 1 x Flash BIOS Button button
    – 1 x 2-Digit Debug Code LED
    – 1 x LED power input connector



    Back Panel I/O Ports

    – 1 x PS/2 mouse & keyboard combo port
    – 3 x USB 2.0 ports
       *1 x Flash BIOS Button
    – 1 x Clear CMOS button
    – 1 x DisplayPort
    – 1 x HDMI™ port
    – 1 x USB 3.1 Gen2 Type-A port
    – 1 x USB 3.1 Gen2 Type-C port
    – 1 x LAN (RJ45) port
    – 2 x USB 3.1 Gen1 Type-A ports
    – 1 x Optical S/PDIF OUT connector
    – 5 x OFC audio jacks


    Dimension

    • 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
    • ATX Form Factor


    Mounting

    • 9 mounting holes


    Unpacking
    packing
