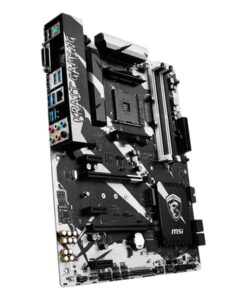

Bo mạch chủ MSI B350 KRAIT GAMING

3.619.000

  • Hãng sản xuất: MSI
  • Form Mainboard: ATX
  • Chipset: B350
  • Số khe ram: 4
  • Socket: AM4
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
  • CPU

    • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
    * This function will be supported depend on the CPU.


    Chipset

    • AMD® B350 Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    – Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    * Please refer www.msi.com for more information on compatible memory. 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz.


    Slots

    • 1 x PCIe 3.0 x16 slots (PCIE_2)
    – RYZEN series processors support x16, x8 mode
    – 7th Gen A-series/ Athlon™ processors support x8 mode

    • 1 x PCIe 2.0 x16 slot (PCIE_4, supports x4 mode)*
    • 3 x PCIe 2.0 x1 slots
    * PCI_E4 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.



    Onboard Graphics

    • 1 DVI-D port, supporting a maximum resolution of 1920×1200@60Hz, 1600×1200@60Hz*
    • 1 HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@24Hz*
    * Only support when using a 7th Gen A-series/ Athlon™ processors
    * Maximum shared memory of 2048 MB


    Multi-GPU

    • Supports 2-Way AMD® CrossFire™ Technology
    – RYZEN series processors support x16/x4 mode
    – 7th Gen A-series/ Athlon™ processors support x8/x4 mode



    Storage

    • AMD® B350 Chipset
    • 2x SATA 6Gb/s ports (SATA1, SATA2)
    -Supports RAID 0 and RAID 1
    •1x M.2 port (Key M)
    – Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices•ASMedia® ASM1061
    • 2x SATA 6Gb/s ports (SATA3, SATA4)


    USB

    • ASMedia® ASM2142 Chipset
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

    • AMD® B350 Chipset
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
    – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

    • AMD® CPU
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX 12V power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    – 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 1 x 4-pin PUMP fan connector (supports up to 2A)
    – 4 x 4-pin system fan connectors
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x Front panel audio connector
    – 2 x System panel connectors
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1 x PS/2 keyboard/ mouse combo port
    – 2 x USB 2.0 Type-A ports
    – 1 x DVI-D port
    – 1 x HDMI™ 1.4 port
    – 1 x LAN (RJ45) port
    – 4 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen2 Type-A port
    – 1 x USB 3.1 Gen2 Type-C port
    – 6 x audio jacks


    Dimension

    • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
    • ATX Form Factor


    Mounting

    • 9 mounting holes

THÔNG SỐ KĨ THUẬT
  • CPU

    • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
    * This function will be supported depend on the CPU.


    Chipset

    • AMD® B350 Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    – Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    * Please refer www.msi.com for more information on compatible memory. 7th Gen A-series/ Athlon ™ processors support a maximum of 2400 MHz.


    Slots

    • 1 x PCIe 3.0 x16 slots (PCIE_2)
    – RYZEN series processors support x16, x8 mode
    – 7th Gen A-series/ Athlon™ processors support x8 mode

    • 1 x PCIe 2.0 x16 slot (PCIE_4, supports x4 mode)*
    • 3 x PCIe 2.0 x1 slots
    * PCI_E4 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.



    Onboard Graphics

    • 1 DVI-D port, supporting a maximum resolution of 1920×1200@60Hz, 1600×1200@60Hz*
    • 1 HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@24Hz*
    * Only support when using a 7th Gen A-series/ Athlon™ processors
    * Maximum shared memory of 2048 MB


    Multi-GPU

    • Supports 2-Way AMD® CrossFire™ Technology
    – RYZEN series processors support x16/x4 mode
    – 7th Gen A-series/ Athlon™ processors support x8/x4 mode



    Storage

    • AMD® B350 Chipset
    • 2x SATA 6Gb/s ports (SATA1, SATA2)
    -Supports RAID 0 and RAID 1
    •1x M.2 port (Key M)
    – Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices•ASMedia® ASM1061
    • 2x SATA 6Gb/s ports (SATA3, SATA4)


    USB

    • ASMedia® ASM2142 Chipset
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    – 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

    • AMD® B350 Chipset
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
    – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

    • AMD® CPU
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX 12V power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    – 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 1 x 4-pin PUMP fan connector (supports up to 2A)
    – 4 x 4-pin system fan connectors
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x Front panel audio connector
    – 2 x System panel connectors
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1 x PS/2 keyboard/ mouse combo port
    – 2 x USB 2.0 Type-A ports
    – 1 x DVI-D port
    – 1 x HDMI™ 1.4 port
    – 1 x LAN (RJ45) port
    – 4 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen2 Type-A port
    – 1 x USB 3.1 Gen2 Type-C port
    – 6 x audio jacks


    Dimension

    • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
    • ATX Form Factor


    Mounting

    • 9 mounting holes
