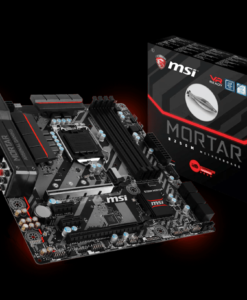

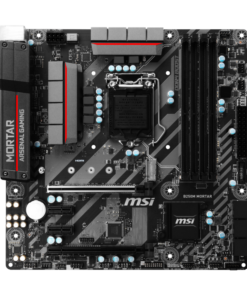

Bo mạch chủ MSI B250M MORTAR

1.990.000 ₫

  • Hãng sản xuất: MSI
  • Form Mainboard: M-ATX
  • Chipset: B250
  • Số khe ram: 4
  • Socket: LGA 1151
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
CÁC MẪU PC KHÁC

Máy bộ

HSPC GSR25 – Cấu hình Gaming core i3-12100F Ram 16Gb VGA 1650 4GB

13.340.000 ₫

Máy bộ

HSPC WS02 – Core i5 9400F Ram 16GB SSD 180GB VGA 1050Ti Nguồn 500W

16.790.000 ₫

Máy bộ

HSPC VP14 – Core i5 10600 Ram 8GB SSD 120GB Nguồn 550W – Mạnh hơn i7 8700

11.780.000 ₫

Máy bộ

HSPC G20 – Ryzen 5 3600X Ram 16GB SSD 240GB VGA 5700XT Nguồn 650W

24.690.000 ₫

Máy bộ

HSPC G27 – Core i7 9700 Ram 16GB SSD 240GB VGA 2080 Super Nguồn 750W

40.290.000 ₫

Máy bộ

HSPC WS20 – CPU AMD Ryzen 9 5900X RAM 16GB SSD 500GB VGA RX460 2GB NGUỒN 650W

28.360.000 ₫

  • CPU

    • Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
    * This function will be supported depend on the CPU.
    Chipset• Intel® B250 Chipset
    Main Memory• 4 x DDR4 memory slots, support up to 64GB
    – 7th Gen processors support DDR4 2400/ 2133 MHz*/ **
    – B250 chipset + 6th Gen processors support DDR4 2133 MHz*/ **
    • Dual channel memory architecture
    • Supports Intel® Extreme Memory Profile (XMP)**
    * Please refer to www.msi.com for more information on compatible memory.
    **DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode.
    Slots• 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
    • 2 x PCIe 3.0 x1 slots

    Onboard Graphics    • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
    • 1 x DisplayPort, supports a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz,1920×1200@60Hz
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz(7th CPU), 4096×2160@24Hz(6th CPU), 2560×1600@60Hz

    Multi-GPU    • Supports 2-Way AMD® CrossFire™ Technology


    Storage

    • Intel® B250 Chipset
    • 6 x SATA 6Gb/s ports*
    • 1 x M.2 slot (Key M)
    – Support up to PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260 /2280/ 22110 storage devices
    – Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
    – Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors

    * The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
    ** The Turbo U.2 Host Card is not included, please purchase separately.
    USB• Intel® B250 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports + 1 Type-C port on the back panel, 2 ports available through the internal USB connector)
    ƒ- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    Audio• Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio

    LAN • 1 x Intel® I219-V Gigabit LAN controller

    Internal I/O Connectors– 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 1 x M.2 slot
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x 4-pin CPU fan connector
    – 3 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x Serial port connector
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x TBT connector
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper


    Back Panel I/O Ports– 1 x PS/2 mouse & keyboard combo port
    – 2 x USB 2.0 ports
    – 1 x DVI-D port
    – 1 x DisplayPort
    – 1 x HDMI™ port
    – 1 x LAN (RJ45) port
    – 3 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen1 Type-C port
    – 6 x OFC audio jacks

    Dimension• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    • Micro-ATX Form Factor

    Mounting• 8 mounting holes
THÔNG SỐ KĨ THUẬT

  • CPU

    • Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
    * This function will be supported depend on the CPU.
    Chipset• Intel® B250 Chipset
    Main Memory• 4 x DDR4 memory slots, support up to 64GB
    – 7th Gen processors support DDR4 2400/ 2133 MHz*/ **
    – B250 chipset + 6th Gen processors support DDR4 2133 MHz*/ **
    • Dual channel memory architecture
    • Supports Intel® Extreme Memory Profile (XMP)**
    * Please refer to www.msi.com for more information on compatible memory.
    **DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode.
    Slots• 2 x PCIe 3.0 x16 slots (support x16/x4 mode)
    • 2 x PCIe 3.0 x1 slots

    Onboard Graphics    • 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
    • 1 x DisplayPort, supports a maximum resolution of 4096×2304@24Hz, 2560×1600@60Hz, 3840×2160@60Hz,1920×1200@60Hz
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz(7th CPU), 4096×2160@24Hz(6th CPU), 2560×1600@60Hz

    Multi-GPU    • Supports 2-Way AMD® CrossFire™ Technology


    Storage

    • Intel® B250 Chipset
    • 6 x SATA 6Gb/s ports*
    • 1 x M.2 slot (Key M)
    – Support up to PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260 /2280/ 22110 storage devices
    – Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
    – Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors

    * The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
    ** The Turbo U.2 Host Card is not included, please purchase separately.
    USB• Intel® B250 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports + 1 Type-C port on the back panel, 2 ports available through the internal USB connector)
    ƒ- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
    Audio• Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio

    LAN • 1 x Intel® I219-V Gigabit LAN controller

    Internal I/O Connectors– 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 1 x M.2 slot
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x 4-pin CPU fan connector
    – 3 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x Serial port connector
    – 1 x RGB LED connector
    – 1 x TPM module connector
    – 1 x TBT connector
    – 1 x Chassis Intrusion connector
    – 1 x Clear CMOS jumper


    Back Panel I/O Ports– 1 x PS/2 mouse & keyboard combo port
    – 2 x USB 2.0 ports
    – 1 x DVI-D port
    – 1 x DisplayPort
    – 1 x HDMI™ port
    – 1 x LAN (RJ45) port
    – 3 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen1 Type-C port
    – 6 x OFC audio jacks

    Dimension• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    • Micro-ATX Form Factor

    Mounting• 8 mounting holes
