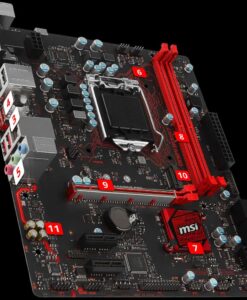

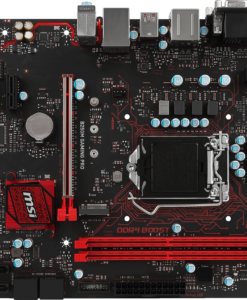

Bo mạch chủ MSI B250M GAMING PRO socket LGA 1151

1.990.000

  • Hãng sản xuất: MSI
  • Form Mainboard: M-ATX
  • Chipset: B250
  • Số khe ram: 2
  • Socket: LGA 1151
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
  • CPU• Supports 6th/ 7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
    * This function will be supported depend on the CPU.


    Chipset• Intel® B250 Chipset


    Main Memory• 2 x DDR4 memory slots, support up to 32GB
    – 7th Gen processors support DDR4 2400/ 2133 MHz*
    – 6th Gen processors support DDR4 2133 MHz*
    • Dual channel memory architecture
    * Please refer www.msi.com for more information on compatible memory.

    Slots• 1 x PCIe 3.0 x16 slot (supports x16 mode)
    • 2 x PCIe 3.0 x1 slots



    Onboard Graphics
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz(7th CPU), 4096×2160@24Hz(6th CPU), 2560×1600@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
    • 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz


    Storage

    • Intel® B250 Chipset
    • 6 x SATA 6Gb/s ports
    • 1x M.2 slot (Key M)*
    – Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260 /2280 storage devices
    – Intel® Optane™ Memory Ready
    – Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**

    *The SATA1 connector will be unavailable when an M.2 SSD module has been installed in the M.2_1 slot.
    ** The Turbo U.2 Host Card is not included, please purchase separately.



    USB• Intel® B250 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
    – 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)


    Audio• Realtek® ALC887 Codec
    – 7.1-Channel High Definition Audio



    LAN • 1 x Intel® I219-V Gigabit LAN controller



    Internal I/O Connectors– 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x RGB LED connecotr
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports– 1 x PS/2 keyboard port
    – 1 x PS/2 mouse port
    – 1 x VGA port
    – 1 x DVI-D port
    – 1 x HDMI™ port
    – 2 x USB 2.0 Type-A ports
    – 3 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen1 Type-C port
    – 1 x LAN (RJ45) port
    – 3 x audio jacks


    Dimension• 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
    • m-ATX Form Factor

    Mounting• 6 mounting holes

THÔNG SỐ KĨ THUẬT
  • CPU• Supports 6th/ 7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
    * This function will be supported depend on the CPU.


    Chipset• Intel® B250 Chipset


    Main Memory• 2 x DDR4 memory slots, support up to 32GB
    – 7th Gen processors support DDR4 2400/ 2133 MHz*
    – 6th Gen processors support DDR4 2133 MHz*
    • Dual channel memory architecture
    * Please refer www.msi.com for more information on compatible memory.

    Slots• 1 x PCIe 3.0 x16 slot (supports x16 mode)
    • 2 x PCIe 3.0 x1 slots



    Onboard Graphics
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30Hz(7th CPU), 4096×2160@24Hz(6th CPU), 2560×1600@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
    • 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz


    Storage

    • Intel® B250 Chipset
    • 6 x SATA 6Gb/s ports
    • 1x M.2 slot (Key M)*
    – Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    – Supports 2242/ 2260 /2280 storage devices
    – Intel® Optane™ Memory Ready
    – Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**

    *The SATA1 connector will be unavailable when an M.2 SSD module has been installed in the M.2_1 slot.
    ** The Turbo U.2 Host Card is not included, please purchase separately.



    USB• Intel® B250 Chipset
    – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
    – 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)


    Audio• Realtek® ALC887 Codec
    – 7.1-Channel High Definition Audio



    LAN • 1 x Intel® I219-V Gigabit LAN controller



    Internal I/O Connectors– 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 6 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x RGB LED connecotr
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports– 1 x PS/2 keyboard port
    – 1 x PS/2 mouse port
    – 1 x VGA port
    – 1 x DVI-D port
    – 1 x HDMI™ port
    – 2 x USB 2.0 Type-A ports
    – 3 x USB 3.1 Gen1 Type-A ports
    – 1 x USB 3.1 Gen1 Type-C port
    – 1 x LAN (RJ45) port
    – 3 x audio jacks


    Dimension• 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
    • m-ATX Form Factor

    Mounting• 6 mounting holes
