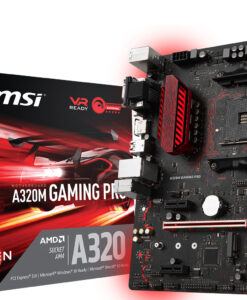

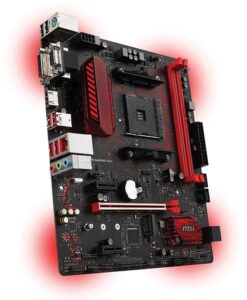

Bo mạch chủ MSI A320M GAMING PRO socket AM4

2.050.000

  • Hãng sản xuất: MSI
  • Form Mainboard: M-ATX
  • Chipset: A320
  • Số khe ram: 2
  • Socket: AM4
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
  • CPU

    • Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

    Chipset

    • AMD®A320 Chipset


    Main Memory

    • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
    – Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz*
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    * A-series / Athlon™ X4 processors support up to DDR 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

    Slots

    • 1 x PCIe 3.0 x16 slot
    – – Supports x 16 speed with RYZEN Series Processors
    – Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
    – Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
    • 2 x PCIe 2.0 x1 slots


    Onboard Graphics

    • 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz(*1,2,3)
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz(*1,3)
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz(*1,2,3)
    1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
    2. Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could support up to 2 display with HDMI/ VGA output
    3. Maximum shared memory of 2048 MB

    Storage

    • AMD®A320 Chipset
    • 4 x SATA 6Gb/s ports
    – Supports RAID 0, RAID1 and RAID 10
    • 1 x M.2 slots (Key M)
    –  Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2(AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280 storage devices

    USB

    • AMD®A320 Chipset
    – 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
    – 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

    • AMD® CPU Chipset
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC887 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 4 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x Extended LED strip connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1 x PS/2 keyboard/ mouse combo port
    – 2 x USB 2.0 Type-A ports
    – 1 x VGA port
    – 1 x DVI-D port
    – 1 x HDMI™ port
    – 4 x USB 3.1 Gen1 Type-A ports
    – 1 x LAN (RJ45) port
    – 3 x audio jacks


    Dimension

    • 9.6 in. x 8.7 in. (24.4 cm x 21.0 cm)
    • m-ATX Form Factor


    Mounting

    • 9 mounting holes


    Operating System

    • Support for Windows® 10 64-bit
    • Support for Windows® 7 64-bit
    * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.


THÔNG SỐ KĨ THUẬT
  • CPU

    • Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

    Chipset

    • AMD®A320 Chipset


    Main Memory

    • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
    – Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz*
    • Dual channel memory architecture
    • Supports non-ECC UDIMM memory
    • Supports ECC UDIMM memory (non-ECC mode)
    * A-series / Athlon™ X4 processors support up to DDR 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

    Slots

    • 1 x PCIe 3.0 x16 slot
    – – Supports x 16 speed with RYZEN Series Processors
    – Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
    – Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
    • 2 x PCIe 2.0 x1 slots


    Onboard Graphics

    • 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz(*1,2,3)
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz(*1,3)
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz(*1,2,3)
    1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
    2. Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could support up to 2 display with HDMI/ VGA output
    3. Maximum shared memory of 2048 MB

    Storage

    • AMD®A320 Chipset
    • 4 x SATA 6Gb/s ports
    – Supports RAID 0, RAID1 and RAID 10
    • 1 x M.2 slots (Key M)
    –  Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2(AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280 storage devices

    USB

    • AMD®A320 Chipset
    – 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
    – 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

    • AMD® CPU Chipset
    – 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC887 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 4 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x Extended LED strip connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1 x PS/2 keyboard/ mouse combo port
    – 2 x USB 2.0 Type-A ports
    – 1 x VGA port
    – 1 x DVI-D port
    – 1 x HDMI™ port
    – 4 x USB 3.1 Gen1 Type-A ports
    – 1 x LAN (RJ45) port
    – 3 x audio jacks


    Dimension

    • 9.6 in. x 8.7 in. (24.4 cm x 21.0 cm)
    • m-ATX Form Factor


    Mounting

    • 9 mounting holes


    Operating System

    • Support for Windows® 10 64-bit
    • Support for Windows® 7 64-bit
    * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
