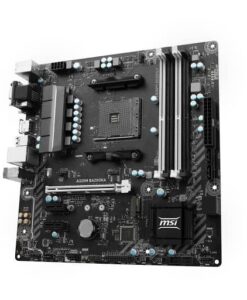

Bo mạch chủ Mainboard MSI A320M Bazooka Socket AM4

2.250.000

  • Hãng sản xuất: MSI
  • Form Mainboard: M-ATX
  • Chipset: A320
  • Số khe ram: 4
  • Socket: AM4
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
  • CPU

    • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4


    Chipset

    • AMD®A320 Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    – Support DDR4 1866/ 2133/ 2400/ 2667 Mhz*
    • Dual channel memory architecture
    • Support ECC UDIMM memory (non-ECC mode)
    • Support non-ECC UDIMM memory
    * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz. Please refer www.msi.com for more information on compatible memory.


    Slots

    • 1x PCIe 3.0 x16 slot
    – RYZEN series processors support x16 mode
    – 7th Gen A-series/ Athlon™ processors support x8 mode
    • 2 x PCIe 2.0 x1 slots



    Onboard Graphics

    • 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz*
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz*
    * Only support when using a 7th Gen A-series/ Athlon™ processor
    * Maximum shared memory of 2048 MB

    Storage

    • AMD® A320 Chipset
    • 4 x SATA 6Gb/s ports
    – Support RAID 0, RAID 1 and RAID 10
    • 1 x M.2 slot (Key M)
    – Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s 2242/ 2260 /2280 storage devices


    USB

    • AMD® A320 Chipset
    – 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
    – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

    • AMD® processor
    – 4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 4 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x RGB LED strip connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1x PS/2 keyboard/ mouse combo port
    – 2x USB 2.0 Type-A ports
    – 1x VGA port
    – 1x DVI-D port
    – 1x HDMI™ port
    – 4x USB 3.1 Gen1 Type-A ports
    – 1x LAN (RJ45) port
    – 3x audio jacks


    Dimension

    • Micro-ATX Form Factor
    • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)


THÔNG SỐ KĨ THUẬT
  • CPU

    • Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4


    Chipset

    • AMD®A320 Chipset


    Main Memory

    • 4 x DDR4 memory slots, support up to 64GB
    – Support DDR4 1866/ 2133/ 2400/ 2667 Mhz*
    • Dual channel memory architecture
    • Support ECC UDIMM memory (non-ECC mode)
    • Support non-ECC UDIMM memory
    * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz. Please refer www.msi.com for more information on compatible memory.


    Slots

    • 1x PCIe 3.0 x16 slot
    – RYZEN series processors support x16 mode
    – 7th Gen A-series/ Athlon™ processors support x8 mode
    • 2 x PCIe 2.0 x1 slots



    Onboard Graphics

    • 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz
    • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz*
    • 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz*
    * Only support when using a 7th Gen A-series/ Athlon™ processor
    * Maximum shared memory of 2048 MB

    Storage

    • AMD® A320 Chipset
    • 4 x SATA 6Gb/s ports
    – Support RAID 0, RAID 1 and RAID 10
    • 1 x M.2 slot (Key M)
    – Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s 2242/ 2260 /2280 storage devices


    USB

    • AMD® A320 Chipset
    – 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
    – 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

    • AMD® processor
    – 4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    Audio

    • Realtek® ALC892 Codec
    – 7.1-Channel High Definition Audio



    LAN

    • 1 x Realtek® 8111H Gigabit LAN controller



    Internal I/O Connectors

    – 1 x 24-pin ATX main power connector
    – 1 x 8-pin ATX 12V power connector
    – 4 x SATA 6Gb/s connectors
    – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    – 1 x 4-pin CPU fan connector
    – 2 x 4-pin system fan connectors
    – 1 x Front panel audio connector
    – 2 x Front panel connectors
    – 1 x TPM module connector
    – 1 x Chassis Intrusion connector
    – 1 x Serial port connector
    – 1 x Parallel port connector
    – 1 x RGB LED strip connector
    – 1 x Clear CMOS jumper



    Back Panel I/O Ports

    – 1x PS/2 keyboard/ mouse combo port
    – 2x USB 2.0 Type-A ports
    – 1x VGA port
    – 1x DVI-D port
    – 1x HDMI™ port
    – 4x USB 3.1 Gen1 Type-A ports
    – 1x LAN (RJ45) port
    – 3x audio jacks


    Dimension

    • Micro-ATX Form Factor
    • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
