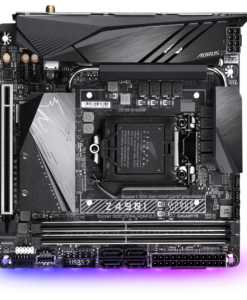

Bo mạch chủ GIGABYTE Z490I AORUS ULTRA

7.300.000

  • Hãng sản xuất: Gigabyte
  • Form Mainboard: Mini-ITX
  • Chipset: Z490
  • Số khe ram: 2
  • Socket: LGA1200
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
4.990.000

Bo mạch chủ

Mainboard MSI B550-A PRO

2.990.000
6.190.000
1.320.000
1.590.000
7.390.000
CÁC MẪU MAINBOARD KHÁC
1.330.000

Bo mạch chủ

Mainboard Asus G41 DDR3

1.350.000
4.250.000
1.990.000

Bo mạch chủ

Main Intel G43

950.000
  • Tên thành phần Thông số kỹ thuật
    CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU
    (Please refer “CPU Support List” for more information.)
    Chipset Intel® Z490 Express Chipset
    Bộ nhớ Intel® Core™ i9/i7 processors:
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)
    Card đồ họa tích hợp Integrated Graphics Processor+PARADE PS175 chip:
    1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 512 MB
    Âm thanh Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Wireless Communication module
    Intel® Wi-Fi 6 AX201
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 5.1
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    Giao diện lưu trữ
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    Công nghệ đa card đồ họa Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Giao diện lưu trữ 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    USB Chipset:
    1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
    Kết nối I/O bên trong 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB Type-C™ header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Kết nối bảng phía sau 1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks
    Điều khiển I/O iTE® I/O Controller Chip
    Theo dõi phần cứng
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Theo dõi phần cứng Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhất Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Gói phần mềm Norton® Internet Security (OEM version)
    cFosSpeed
    XSplit Gamecaster + Broadcaster (12 months license)
    Hệ điều hành Support for Windows 10 64-bit
    Hệ số khuôn ATX Form Factor; 30.5cm x 24.4cm
THÔNG SỐ KĨ THUẬT
  • Tên thành phần Thông số kỹ thuật
    CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU
    (Please refer “CPU Support List” for more information.)
    Chipset Intel® Z490 Express Chipset
    Bộ nhớ Intel® Core™ i9/i7 processors:
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)
    Card đồ họa tích hợp Integrated Graphics Processor+PARADE PS175 chip:
    1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 512 MB
    Âm thanh Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    Support for DTS:X® Ultra
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Wireless Communication module
    Intel® Wi-Fi 6 AX201
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    BLUETOOTH 5.1
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    Giao diện lưu trữ
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    Công nghệ đa card đồ họa Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Giao diện lưu trữ 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    USB Chipset:
    1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
    Kết nối I/O bên trong 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB Type-C™ header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Kết nối bảng phía sau 1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks
    Điều khiển I/O iTE® I/O Controller Chip
    Theo dõi phần cứng
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Theo dõi phần cứng Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhất Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Gói phần mềm Norton® Internet Security (OEM version)
    cFosSpeed
    XSplit Gamecaster + Broadcaster (12 months license)
    Hệ điều hành Support for Windows 10 64-bit
    Hệ số khuôn ATX Form Factor; 30.5cm x 24.4cm
