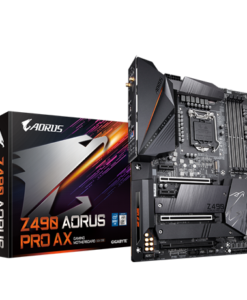

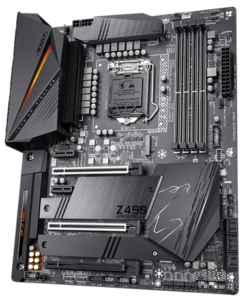

Bo mạch chủ GIGABYTE Z490 AORUS PRO AX

7.390.000

  • Hãng sản xuất: Gigabyte
  • Form Mainboard: ATX
  • Chipset: Z490
  • Số khe ram: 4
  • Socket: LGA1200
THÔNG TIN MUA HÀNG Địa chỉ: 237 LÊ HỒNG PHONG, QUY NHƠN
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0934.822.068
Email: hotro@hoangsoncomputer.com
ZALO: 0934.822.068
KHUYẾN MÃI KM1: Mua Laptop giảm ngay 500k
KM2: Tặng bộ chuột phím 600k khi ráp PC Gaming
KM3: Tặng bộ chuột phím 300k khi ráp PC Văn Phòng
Giảm giá!
1.750.000  1.490.000
2.670.000
5.140.000
Giảm giá!
2.350.000  1.850.000

Bo mạch chủ

Mainboard MSI B550-A PRO

2.990.000
1.330.000
CÁC MẪU MAINBOARD KHÁC
Giảm giá!
1.750.000  1.490.000
2.670.000
5.140.000
Giảm giá!
2.350.000  1.850.000

Bo mạch chủ

Mainboard MSI B550-A PRO

2.990.000
1.330.000
  • Tên thành phần Thông số kỹ thuật
    CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU
    (Please refer to “CPU Support List” for more information.)
    Chipset Intel® Z490 Express Chipset
    Bộ nhớ 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    * To support 3200 MHz, you must use XMP memory.
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer to “Memory Support List” for more information.)
    Card đồ họa tích hợp Integrated Graphics Processor-Intel® HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Maximum shared memory of 512 MB
    Âm thanh Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Công nghệ đa card đồ họa Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Giao diện lưu trữ 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    USB Chipset:
    1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Kết nối I/O bên trong 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C™ header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    Kết nối bảng phía sau 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Điều khiển I/O iTE® I/O Controller Chip
    Theo dõi phần cứng Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhất Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Gói phần mềm Norton® Internet Security (OEM version)
    cFosSpeed
    XSplit Gamecaster + Broadcaster (12 months license)
    Hệ điều hành Support for Windows 10 64-bit
    Hệ số khuôn ATX Form Factor; 30.5cm x 24.4cm
THÔNG SỐ KĨ THUẬT
  • Tên thành phần Thông số kỹ thuật
    CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU
    (Please refer to “CPU Support List” for more information.)
    Chipset Intel® Z490 Express Chipset
    Bộ nhớ 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    * To support 3200 MHz, you must use XMP memory.
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer to “Memory Support List” for more information.)
    Card đồ họa tích hợp Integrated Graphics Processor-Intel® HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Maximum shared memory of 512 MB
    Âm thanh Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    LAN Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Công nghệ đa card đồ họa Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Giao diện lưu trữ 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB/M2M_SB)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    USB Chipset:
    1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    Kết nối I/O bên trong 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C™ header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x Q-Flash Plus button
    Kết nối bảng phía sau 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    3 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI port
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    5 x audio jacks
    Điều khiển I/O iTE® I/O Controller Chip
    Theo dõi phần cứng Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    BIOS 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Tính năng duy nhất Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
    Support for Q-Flash Plus
    Support for Q-Flash
    Support for Xpress Install
    Gói phần mềm Norton® Internet Security (OEM version)
    cFosSpeed
    XSplit Gamecaster + Broadcaster (12 months license)
    Hệ điều hành Support for Windows 10 64-bit
    Hệ số khuôn ATX Form Factor; 30.5cm x 24.4cm
