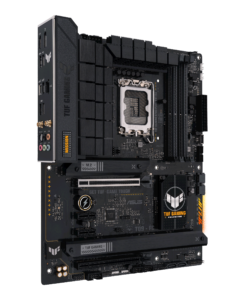

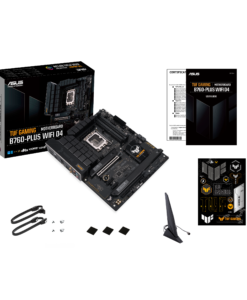

ASUS TUF GAMING B760-PLUS WIFI D4 LGA1700
6.390.000 ₫
MST: 4101526893
HOTLINE: 078.771.6888
ZALO: 0903.513.007
Email: hotro@hoangsoncomputer.com
ZALO: 0903.513.007
Máy bộ
Máy bộ Hoàng Sơn Gigabyte J1800M/4GB/SSD 120GB/Màn hình HKC 18.5 inch/Chuột phím Logitech (Sao chép)
- CÁC MẪU PC KHÁC
-
Giảm giá!
11.130.000 ₫9.450.000 ₫
11.300.000 ₫
24.690.000 ₫
30.690.000 ₫Giảm giá!
15.000.000 ₫13.500.000 ₫Giảm giá!
14.500.000 ₫12.090.000 ₫
| Nhóm thuộc tính của Mainboard | |
| Thương Hiệu | ASUS |
| Model | TUF GAMING B760-PLUS WIFI D4 |
| Kích Cỡ | ATX |
| CPU Socket | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Chipset | Intel® B760 |
| Số Khe Ram | 4 |
| Bus Ram Hỗ Trợ | DDR4 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |
| PCI Express 3.0 x16 | Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Số Cổng SATA | 4 x SATA 6Gb/s ports |
| M.2 | 3 x M.2 slots
Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Chip Xử Lý Âm Thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet
TUF LANGuard |
| Tốc Độ LAN | Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* |

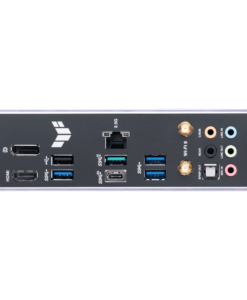

| Cổng I/O Phía Sau | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Onboard USB | Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Cổng Kết Nối Khác | Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Kích Thước (W x L) | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
- THÔNG SỐ KĨ THUẬT
-
Nhóm thuộc tính của Mainboard Thương Hiệu ASUS Model TUF GAMING B760-PLUS WIFI D4 Kích Cỡ ATX CPU Socket Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Chipset Intel® B760 Số Khe Ram 4 Bus Ram Hỗ Trợ DDR4 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Dung Lượng Ram Tối Đa Hỗ Trợ 128GB PCI Express 3.0 x16 Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
PCI Express x1 2 x PCIe 3.0 x1 slots Số Cổng SATA 4 x SATA 6Gb/s ports M.2 3 x M.2 slots Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Chip Xử Lý Âm Thanh Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
LAN Chipset 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Tốc Độ LAN Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2*
Cổng I/O Phía Sau 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Onboard USB Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Cổng Kết Nối Khác Fan and Cooling related 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Kích Thước (W x L) 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - ĐÁNH GIÁ SẢN PHẨM
-
